HermiteTwin

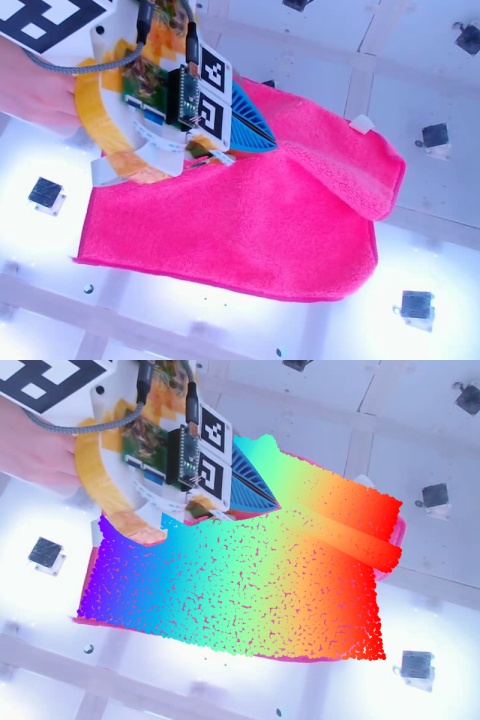

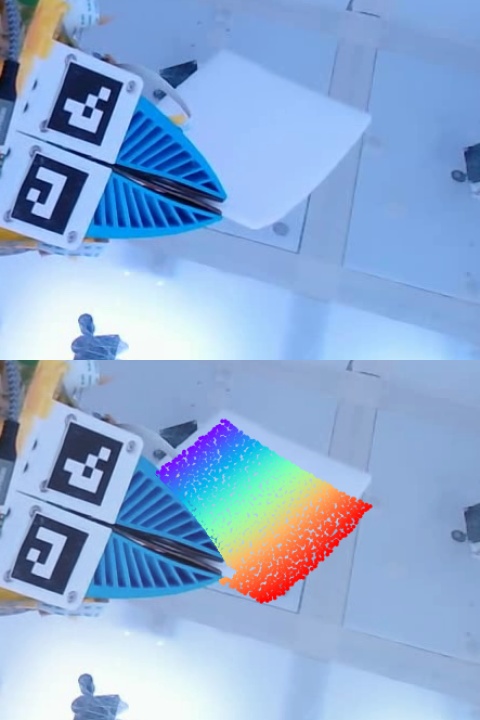

Input above and HermiteTwin resimulation below: Foam · reconstruction — Foam · reconstructionView clip ↗

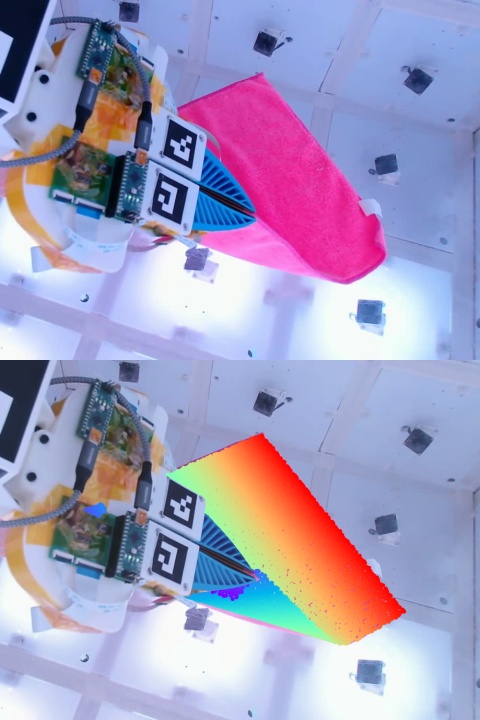

Input video and the identified HermiteTwin, visualized as point clouds.

Observation above; resimulation below. Colors follow the same material points throughout the motion.

Abstract

Existing deformable digital twins often represent a thin object with one particle set that must both model bending and resolve contact with the robot. HermiteTwin separates these roles. A coarse, C¹ bicubic Hermite shell models deformation with Kirchhoff–Love bending, while dense samples in material space are captured, clamped, and released by the gripper. Their attachment forces reach the shell through the Hermite basis, keeping the physical state compact while resolving the grasp at a finer scale. We identify effective material and contact parameters with CMA-ES followed by adjoint-based refinement, and transport a reconstructed Gaussian appearance model with the simulated motion. Experiments on real cloth and foam examine reconstruction, resimulation, and future prediction; additional scenes demonstrate interactions with new objects.

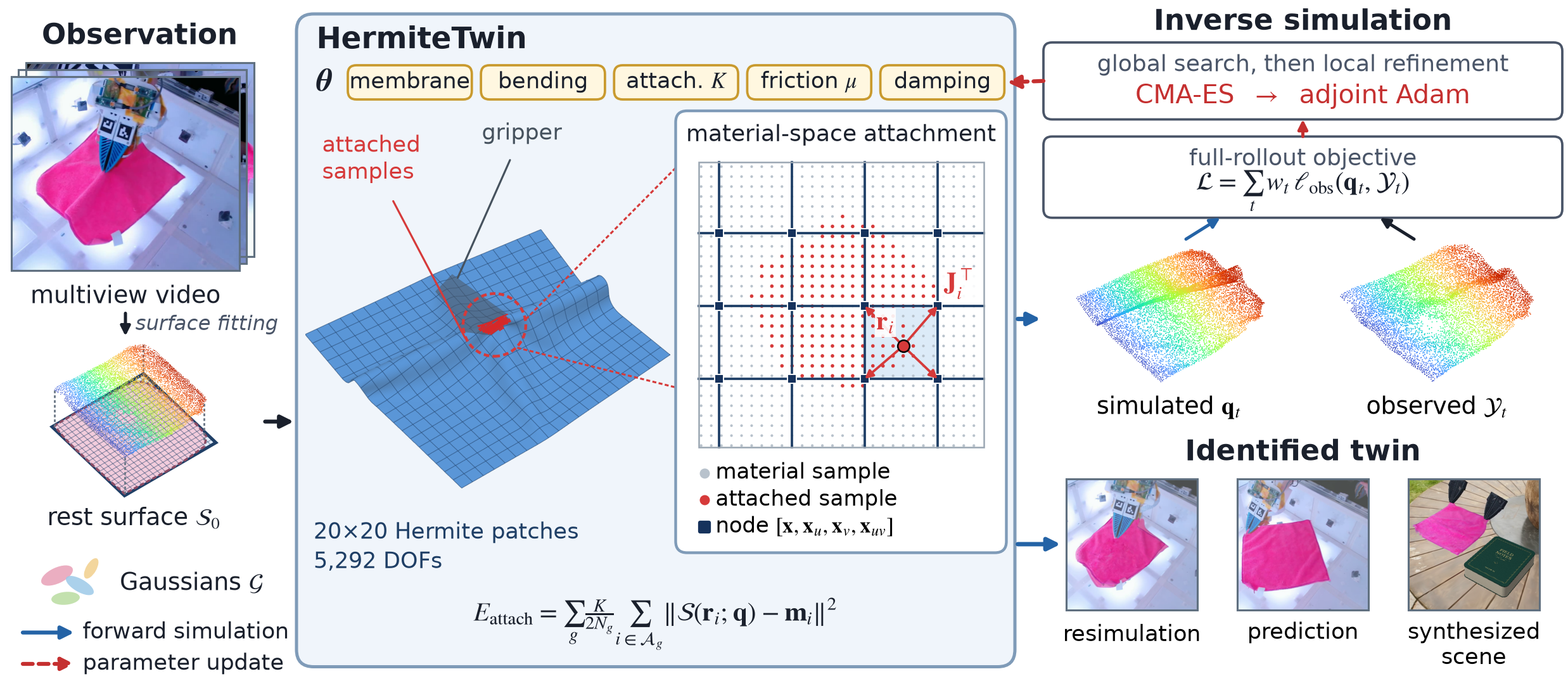

Method Overview

From calibrated multiview video, we reconstruct a rest surface and Gaussian appearance. Inverse simulation identifies effective material and contact parameters. The resulting twin can resimulate the observed interaction, continue under future robot motion, and interact with new objects.

Qualitative Comparisons

Reconstruction and resimulation: HermiteTwin, PhysTwin, and GS-Dynamics. Representative frames from the paper. Simulated points are colored by their material coordinate at rest, so the same color follows the same part of the sheet.

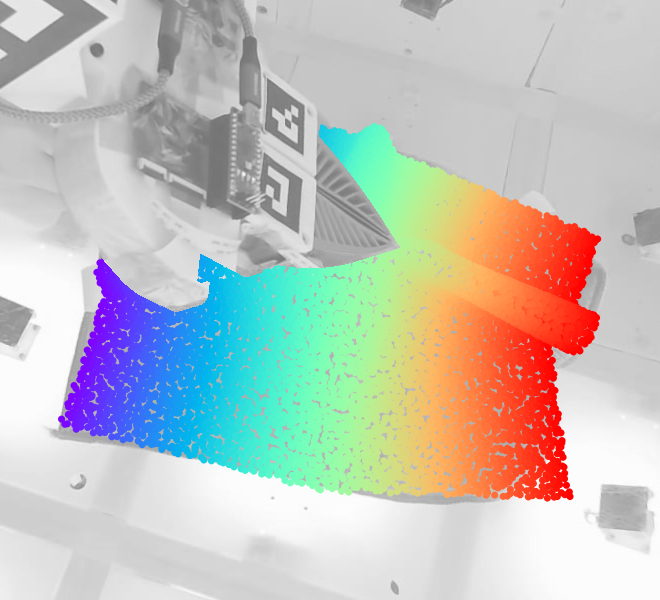

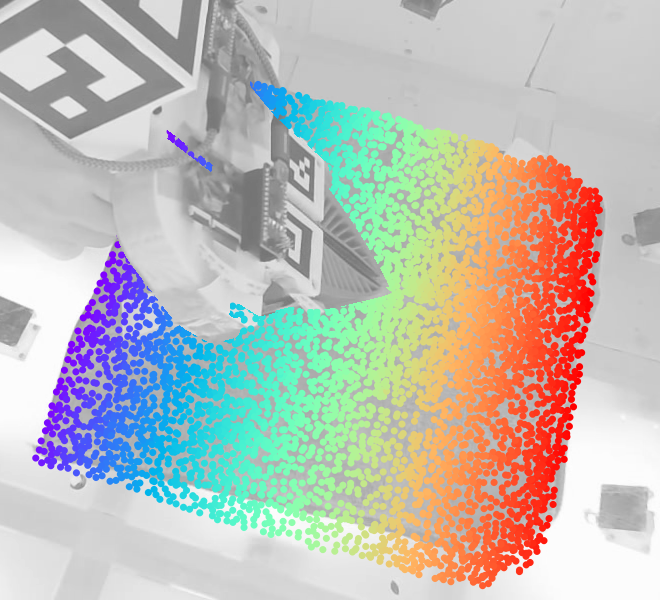

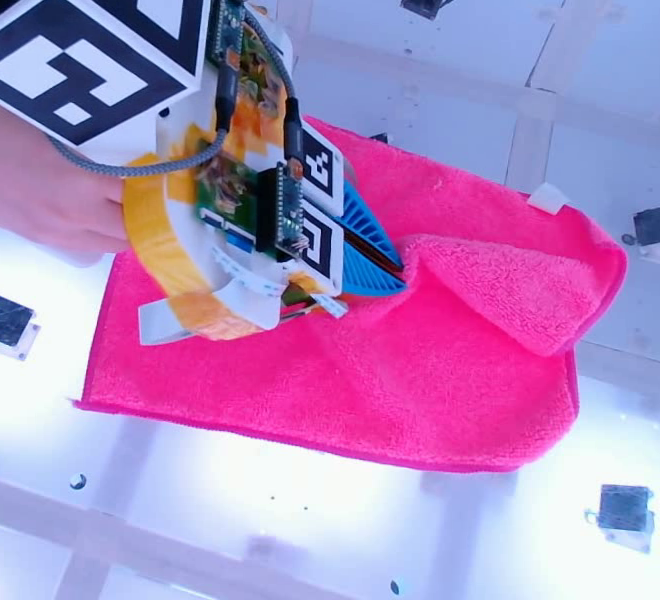

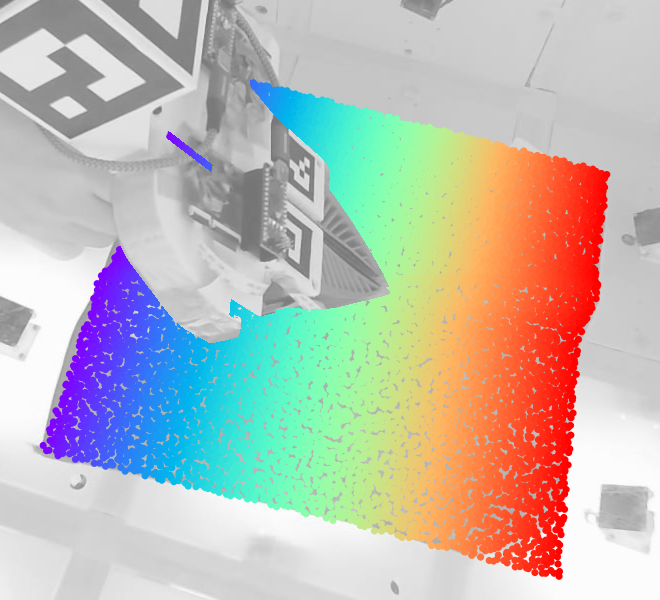

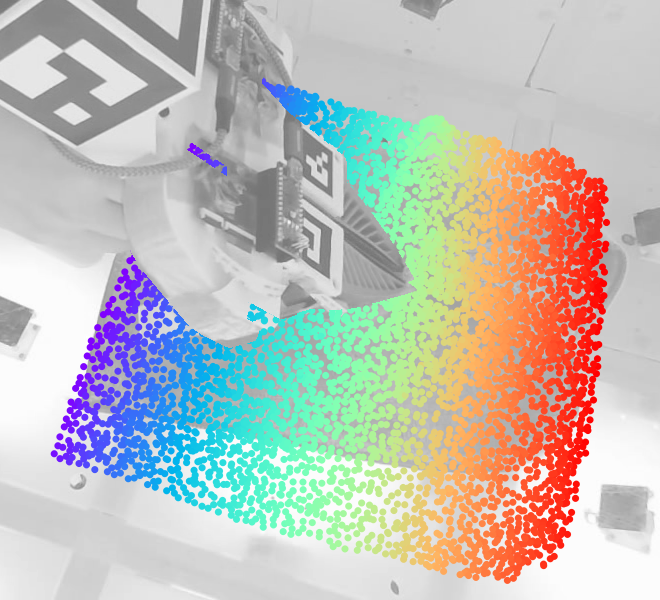

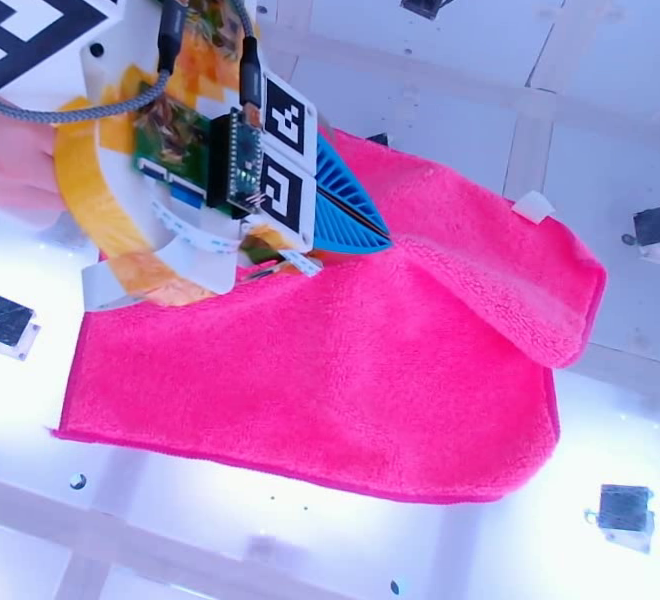

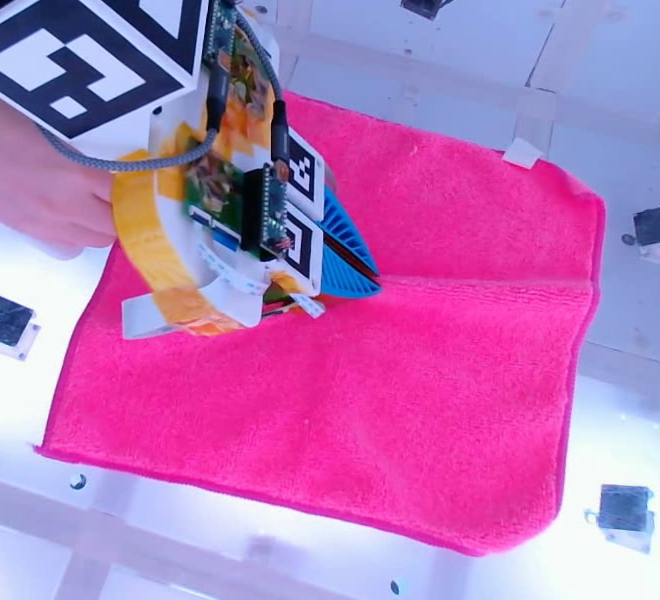

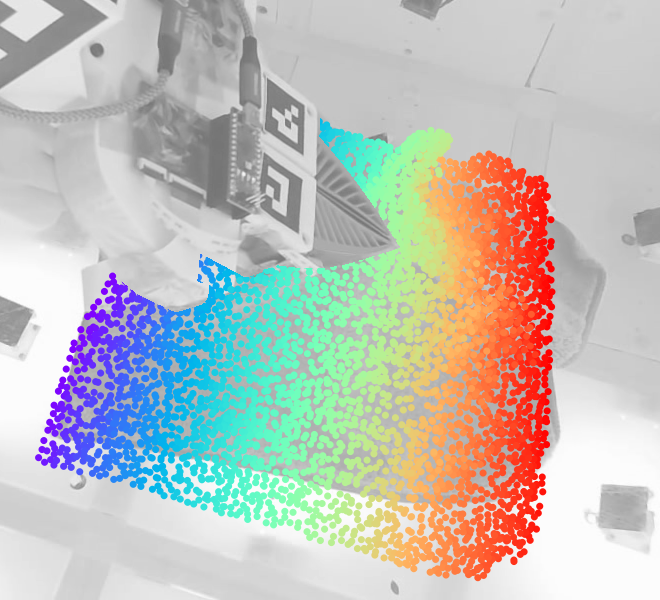

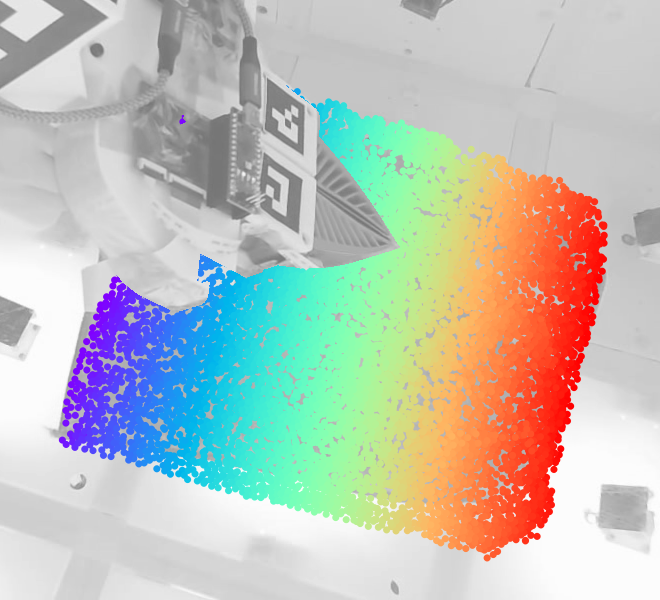

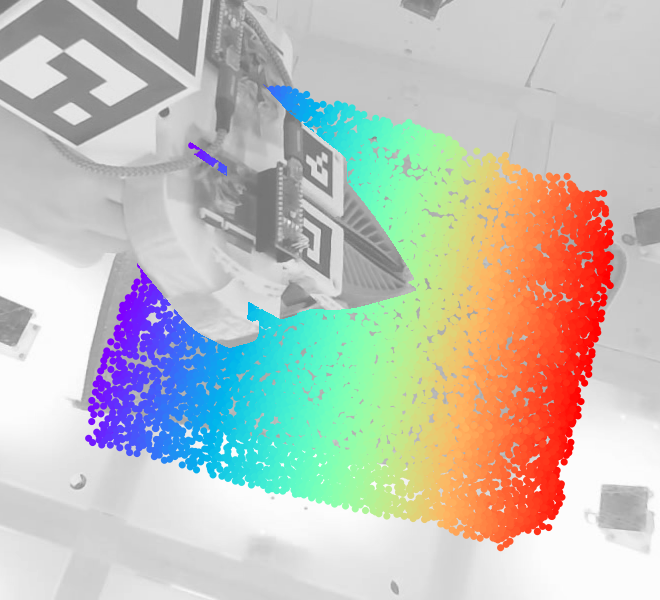

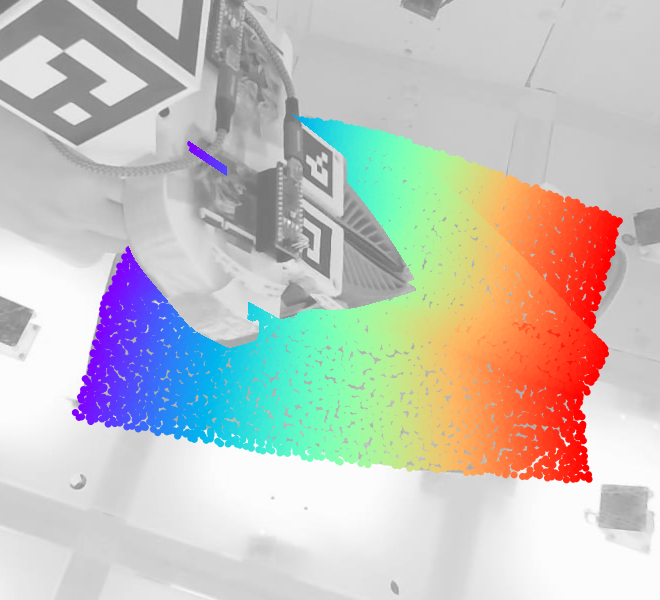

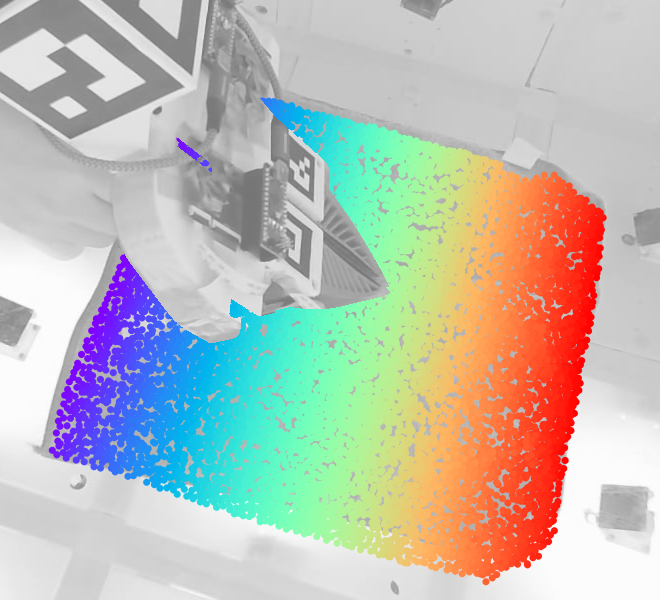

Cloth reconstruction and resimulation
	t = 100	t = 160	t = 269
Observation
HermiteTwin
PhysTwin
GS-Dynamics

The gripper lifts and folds a cloth corner. These panels preserve the historical runs used in the paper figure.

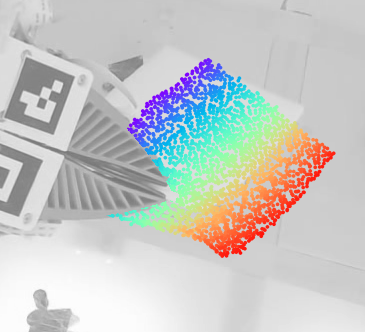

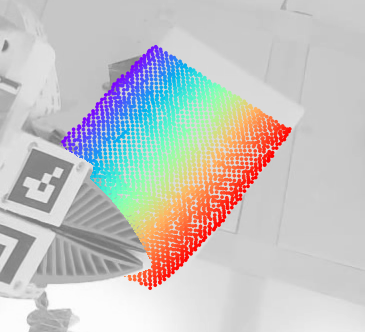

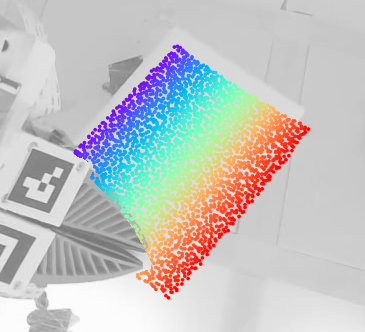

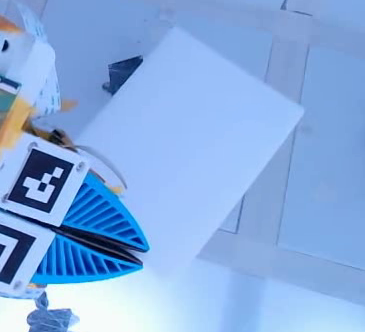

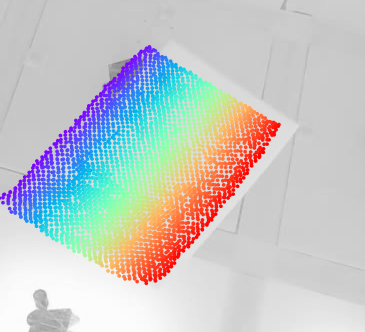

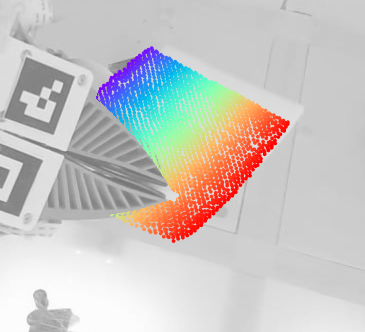

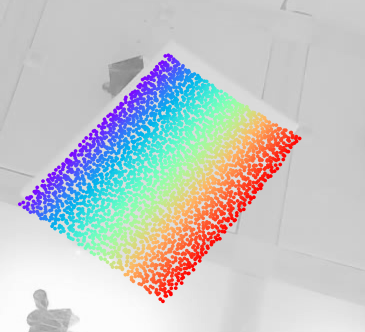

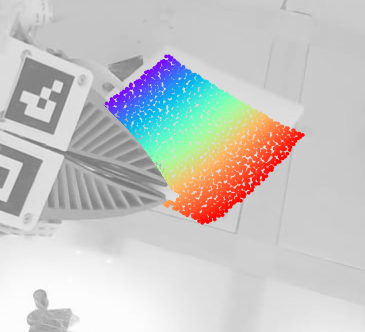

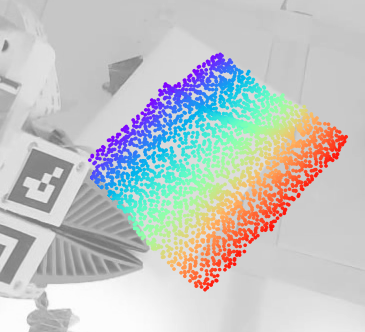

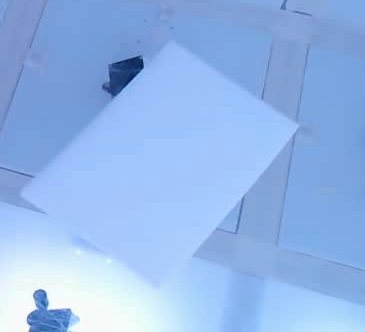

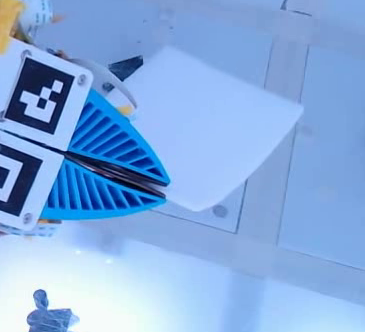

Foam reconstruction and resimulation
	t = 100	t = 150	t = 240
Observation
HermiteTwin
PhysTwin
GS-Dynamics

A stiffer foam sheet under grasping. The archived GS-Dynamics foam panels use a perturbed rollout; the original baseline remains to be verified.

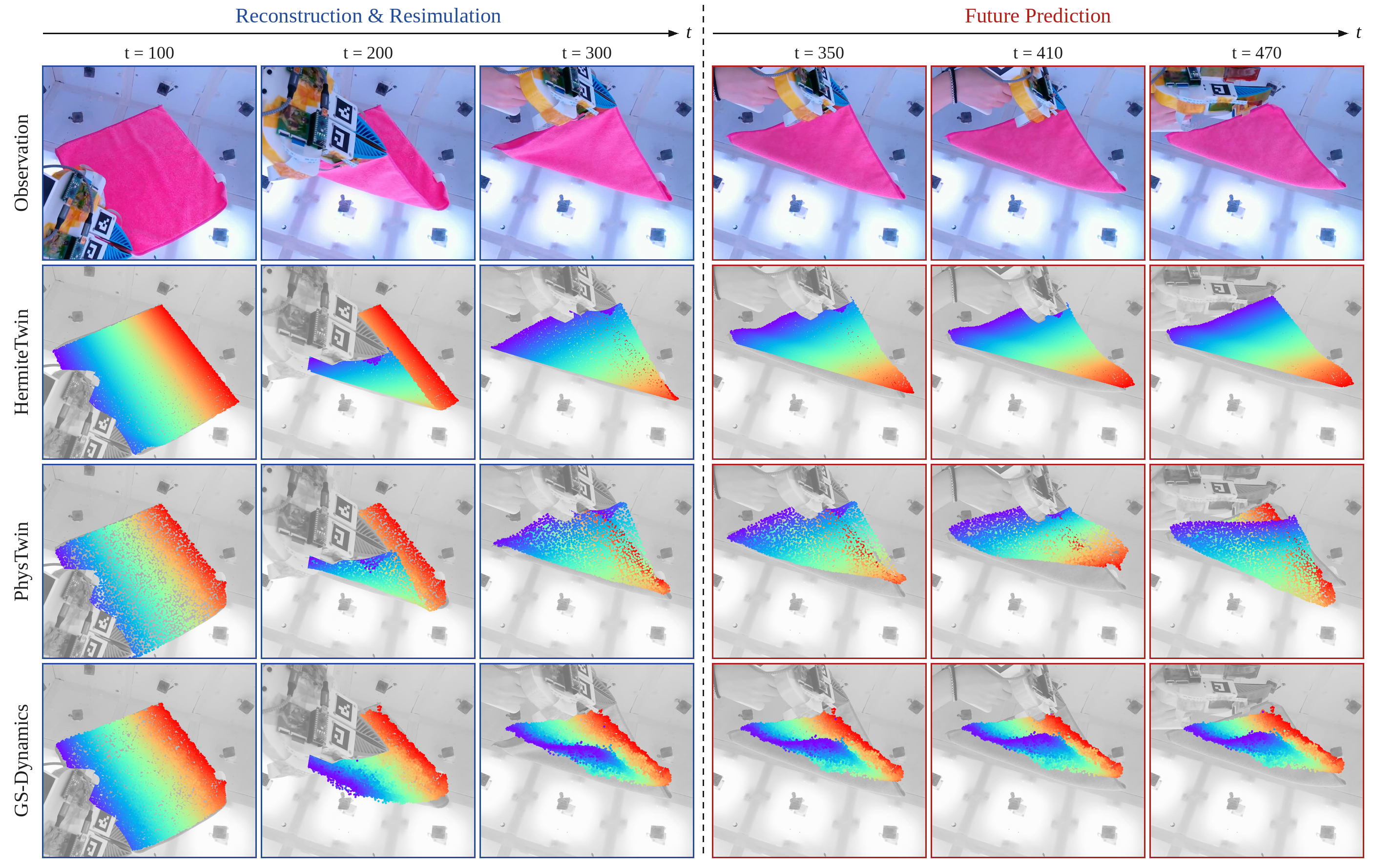

Future Prediction

Fit on frames 1–300, then continue with fixed parameters under recorded future robot motion. The first three columns show fitting frames; the last three show held-out prediction. The simulated state is not reset to the observations.

From Point Clouds to Gaussian Appearance

The same EP3 interaction in motion. Switch between the paper’s material-colored geometry and a Gaussian appearance rendering of the saved trajectories.

Observation · HermiteTwin · PhysTwin · GS-Dynamics. Blue marks fitting; red marks held-out prediction. Download video

This added visualization uses the archived trajectories and camera calibration. It does not rerun physics or change the paper’s quantitative results. Appearance transport can introduce artifacts independently of the simulated geometry.

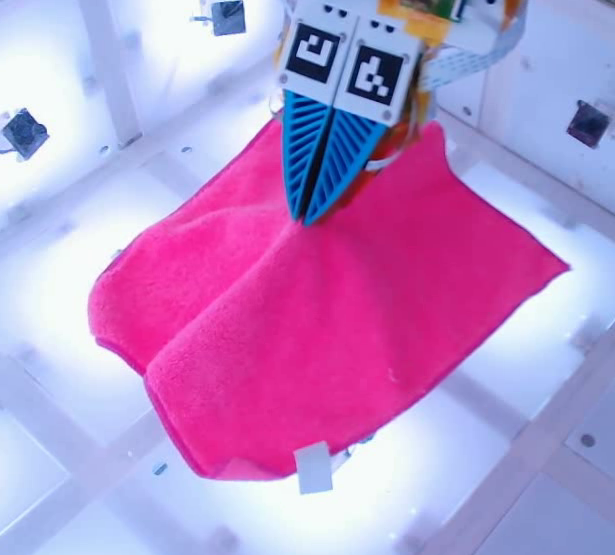

Grasp Transfer

Is the grasp model alone sufficient? Applying the material-space capture, clamp, and release mechanism to PhysTwin lifts the cloth near the fingertip, but does not recover the observed fold in this diagnostic interaction.

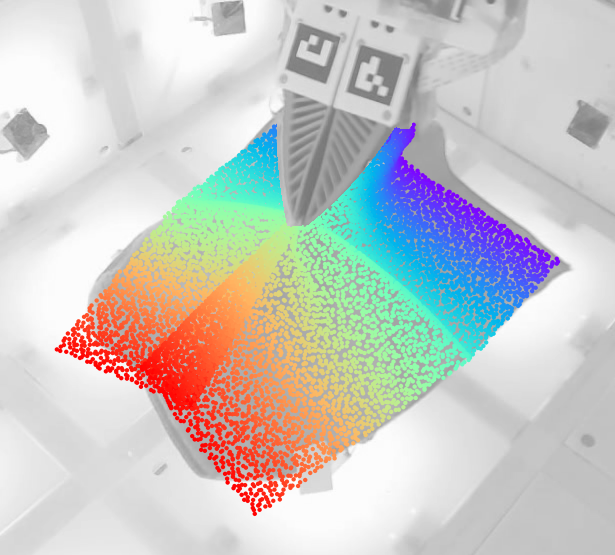

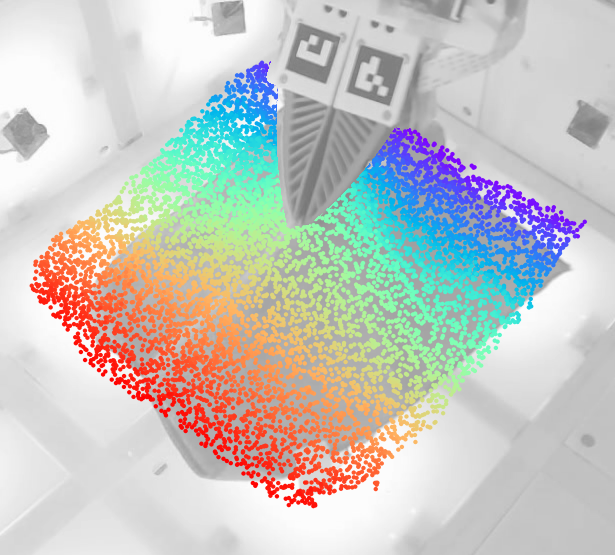

Grasp transfer: HermiteTwin — HermiteTwin

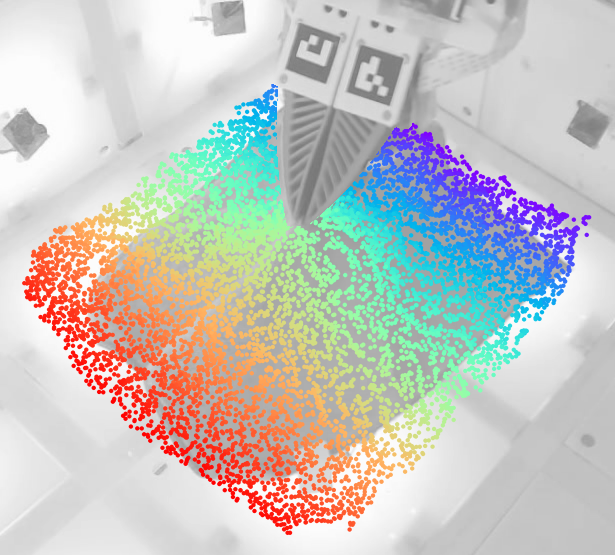

Grasp transfer: PhysTwin + our grasp — PhysTwin + our grasp

Historical grasp-transfer study at frame 160. Its fitting setup is retained separately from the final main-table runs.

Quantitative Results

Values from the current manuscript. Lower CD and LPIPS are better; higher IoU, PSNR, and SSIM are better.

Reconstruction & resimulation

Reconstruction & resimulation
Method	CD ↓ mm²	IoU ↑ %	PSNR ↑ dB
GS-Dynamics	116.95	83.24	22.160
PhysTwin	61.89	85.22	22.745
HermiteTwin	42.05	88.89	24.242

Ten interactions: eight cloth and two foam. Equal interaction weights.

Future prediction

Future prediction
Method	CD ↓ mm²	IoU ↑ %	PSNR ↑ dB	SSIM ↑	LPIPS ↓
GS-Dynamics	552.40	71.40	17.696	0.9132	0.1291
PhysTwin	120.40	81.08	20.022	0.9316	0.0994
HermiteTwin	67.75	84.78	21.417	0.9396	0.0850

The saved five-metric comparison contains eight paired sequences;

Applications

The identified twin can be driven through new interactions: draping over a book, placing inside a box, and toppling a free bottle.

Draping over a book

Placing inside a box

Toppling a free bottle

These synthesized interactions are qualitative demonstrations.

Citation

If you find this work useful, please cite:

BibTeX

Download .bib

@inproceedings{zhang2026hermitetwin,
  title     = {{HermiteTwin: Bicubic Hermite Shell Digital Twins for Contact-Rich Deformable Manipulation}},
  author    = {Kangrui Zhang and Mu Huang and Xing Shen and Tiantian Liu and Bo Ren},
  booktitle = {Submitted to The Fifteenth International Conference on Learning Representations},
  year      = {2026},
  url       = {https://openreview.net/forum?id=0QXB9nl5QA},
  note      = {under review}
}
